The Energy Stack

Store energy safely and affordably with our new silicate-salt battery storage system.

View Details

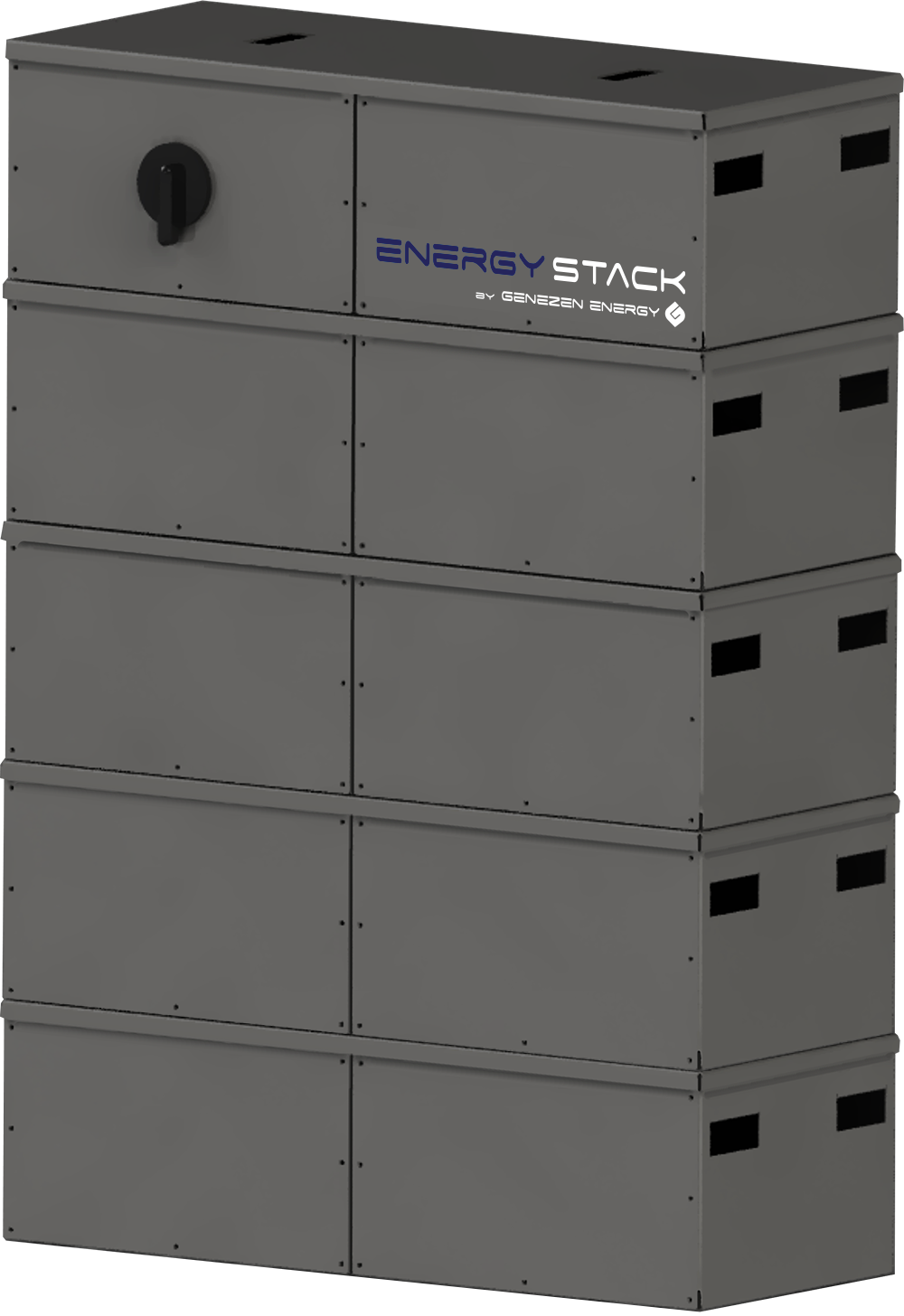

The Energy Stack is a residential energy storage system (ESS) that includes a modular silicate-salt rechargeable battery system.

Our world patented battery electrolyte allows consumers to power their homes longer during grid outages without damaging the batteries.

The Energy Stack is compatible with standard inverters and charge controllers and can be charged and discharged quickly without producing heat.

The Energy Stack is available in a range of capacities from 5.2 kW and up. Consumers can add as many levels necessary to meet their energy storage needs.

  • Holds charge for long periods of time without needing recharging
  • Modular design allows expansion of 24V or 48V stackable modules
  • Energy storage for any environment, no ventilation or cooling necessary
  • Stackable for increased energy storage demands (5.2 kW and up)
  • No thermal runaway risk, non-explosive, compatible with industry standard inverters and charge controllers
  • Powers home in emergencies (off-grid capable)
  • 100% discharge capable
  • No risk of thermal runaway
  • Batteries are completely sealed, requiring no maintenance
  • Batteries are non-corrosive, non-explosive, and fast charge capable
  • Performs in extreme high and low temperatures
  • Non-toxic and non-hazardous recyclable materials

ES 330-48 Battery Specifications

NOMINAL CHARACTERISTICS
Nominal Voltage
48 V DC (42 V - 58 V)
Typical Capacity
330A
Typical Energy
15,840 Wh (15.84 kWh)
Weight
1043 lbs
Gravimetric Density
15.19 Wh/lb
electrical characteristics
Max Charge Voltage
58.8 V
Max Permanent Discharge Current
200 A (limited by ancillary equipment)
Max Permanent Charge Current
200 A (limited by ancillary equipment)
Rec. Charge Current
100 A
Usable Capacity
Max (Immediate Recharge)
100%
For Extended Battery Life
50%
Operation Environment
Charge Temperature
-20°F to 122°F
Discharge Temperature
-40°F to 158°F
Storage Temperature
-20°F to 122°F
MSRP
$7,800

ES 110-48 Battery Specifications

NOMINAL CHARACTERISTICS
Nominal Voltage
48 V DC (42 V - 58 V)
Typical Capacity
110A
Typical Energy
5,280 Wh (5.28 kWh)
Weight
343 lbs
Gravimetric Density
15.39 Wh/lb
electrical characteristics
Max Charge Voltage
58.8 V
Max Permanent Discharge Current
200 A (limited by ancillary equipment)
Max Permanent Charge Current
200 A (limited by ancillary equipment)
Rec. Charge Current
30 A
Usable Capacity
Max (Immediate Recharge)
100%
For Extended Battery Life
50%
Operation Environment
Charge Temperature
-20°F to 122°F
Discharge Temperature
-40°F to 158°F
Storage Temperature
-20°F to 122°F
MSRP
$2,400

ES 110-24 Battery Specifications

NOMINAL CHARACTERISTICS
Nominal Voltage
24 V DC
Typical Capacity
110A
Typical Energy
2,640 Wh (2.64 kWh)
Weight
172 lbs
Gravimetric Density
15.34 Wh/lb
electrical characteristics
Max Charge Voltage
29.4 V
Max Permanent Discharge Current
200 A (limited by ancillary equipment)
Max Permanent Charge Current
200 A (limited by ancillary equipment)
Rec. Charge Current
30 A
Usable Capacity
Max (Immediate Recharge)
100%
For Extended Battery Life
50%
Operation Environment
Charge Temperature
-20°F to 122°F
Discharge Temperature
-40°F to 158°F
Storage Temperature
-20°F to 122°F
MSRP
$1,200
